KELT-20: CHEOPS occultations#
Data download#
[28]:
import CONAN
CONAN.__version__
[28]:
'3.3.12'
[ ]:
from CONAN.get_files import get_CHEOPS_data
df = get_CHEOPS_data("KELT-20")
df.search( filters = { "pi_name" : {"contains":["LENDL"]},
"data_arch_rev" : {"equal":[3]},
"status_published": {"equal":[True]}
})
download the first 4 occultation light curves
[ ]:
df.download(file_keys=df.file_keys[:4], aperture="DEFAULT")
df.scatter()
df.save_CONAN_lcfile(bjd_ref = 2457000, folder="data")
Data Analysis#
[1]:
import numpy as np
import matplotlib.pyplot as plt
from glob import glob
from os.path import basename
from copy import deepcopy
import CONAN
from CONAN import create_configfile, load_configfile
CONAN.__version__
[1]:
'3.3.12'
[2]:
path = "data/"
lcs = sorted(glob(f"{path}KELT-20*"))#, key=os.path.getmtime)
lc_list = [basename(lc) for lc in lcs][:3]
In order to derive different occultation depths for the observations, we will set different filters for the lightcurves while loading them
[3]:
lc_obj = CONAN.load_lightcurves( file_list = lc_list,
data_filepath = path,
filters =[f"CH{i+1}" for i in range(len(lc_list))],
)
lc_obj.clip_outliers(width=11, clip=4, verbose=False)
lc_obj.rescale_data_columns(method = "med_sub", verbose=False)

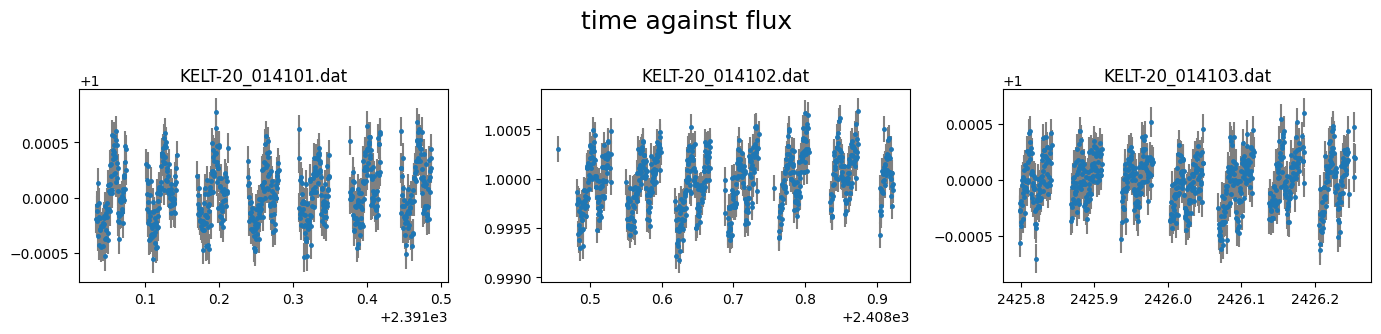

lc_obj.plot()
lc_obj
load_lightcurves(): loading lightcurves from path - data/
# ============ Input lightcurves, filters baseline function =======================================================
name flt π_πm |Ssmp ClipOutliers scl_col |off col0 col3 col4 col5 col6 col7 col8|sin id GP spline
KELT-20_014101.dat CH1 0.1 |None c1:W11C4n1 med_sub | y 0 0 0 0 0 0 0|n 1 n None
KELT-20_014102.dat CH2 0.2 |None c1:W11C4n1 med_sub | y 0 0 0 0 0 0 0|n 2 n None
KELT-20_014103.dat CH3 0.3 |None c1:W11C4n1 med_sub | y 0 0 0 0 0 0 0|n 3 n None
[3]:
lightcurves from filepath: data/
1 transiting planet(s)
Order of unique filters: ['CH1', 'CH2', 'CH3']
setup planet parameters with the occultation depth D_occ as the only varying one
[4]:
lc_obj.planet_parameters( T_0 = 2459406.927174 - 2457000,
Period = 3.474074 ,
Impact_para = 0.515,
RpRs = 0.11572,
Duration = 0.13998861,
)
lc_obj.phasecurve( D_occ = (-100,0,300))
# ============ Planet parameters (Transit and RV) setup ==========================================================
name fit prior note
rho_star/[Duration] n F(0.13998861) #choice in []|unit(gcm^-3/days)
--------repeat this line & params below for multisystem, adding '_planet_number' to the names e.g RpRs_1 for planet 1, ...
RpRs n F(0.11572) #range[-0.5,0.5]
Impact_para n F(0.515) #range[0,2]
T_0 n F(2406.9271740000695) #unit(days)
Period n F(3.474074) #range[0,inf]days
[Eccentricity]/sesinw n F(0) #choice in []|range[0,1]/range[-1,1]
[omega]/secosw n F(90) #choice in []|range[0,360]deg/range[-1,1]
K n F(0) #unit(same as RVdata)
CH1: modeling only occultation signal
CH2: modeling only occultation signal
CH3: modeling only occultation signal
# ============ Phase curve setup ================================================================================
flt D_occ[ppm] Fn[ppm] ph_off[deg] A_ev[ppm] f1_ev[ppm] A_db[ppm] pc_model
CH1 U(-100,0,300) None None F(0) F(0) F(0) cosine
CH2 U(-100,0,300) None None F(0) F(0) F(0) cosine
CH3 U(-100,0,300) None None F(0) F(0) F(0) cosine
Notice the strong systematics in the CHEOPS lightcurves. they are mostly due to to correlation with the spacecraft roll angle (which is stored in column 5 of the data). we can visualize this correlation by plotting column 5 against the flux
[5]:

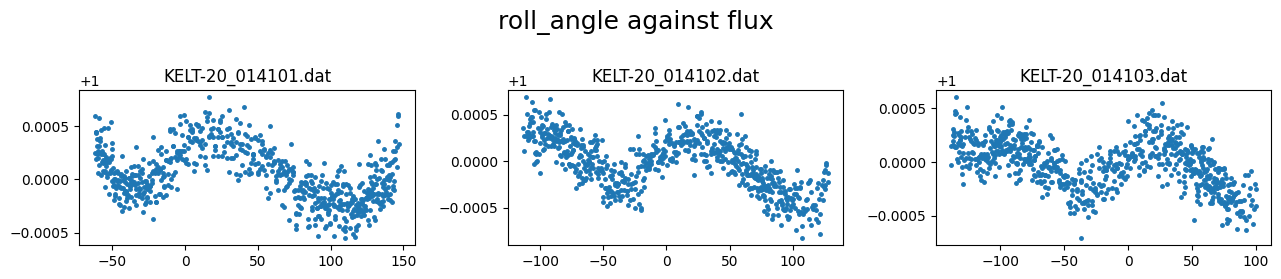

lc_obj.plot(plot_cols=(5,1), col_labels=("roll_angle","flux"), figsize= (13,3))
Different methods can be used to decorrelate the flux from the roll-angle. Here will try three methods:
fit Spline as a function of the roll-angle
fit a combination of sines and cosines of the roll-angle (and the harmonics).
fit a GP as a function of roll-angle

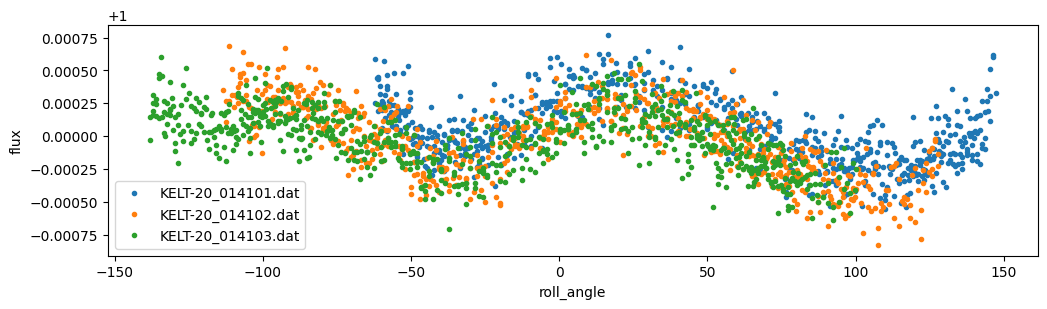

if plotted together, the roll angle trend of these visits aligns nicely. For the sinusoid and GP fit, we will be able to fit the same roll-angle trend to the 3 visits
[6]:
plt.figure(figsize=(12,3))
for lc in lc_obj._input_lc.keys():
plt.plot(lc_obj._input_lc[lc]["col5"], lc_obj._input_lc[lc]["col1"],".", label=lc)
plt.legend()
plt.xlabel("roll_angle")
plt.ylabel("flux");
Besides the roll-angle trend, the flux can be correlated with other ancillary data. we can use the get_decorr() method to automatically find other significant correlations. But here we will manually select the column of the data to decorrelate against. Letβs use col7 (contam) and col8 (delta_T)
[7]:
lc_obj.lc_baseline(dcol7=1, dcol8=1)
# ============ Input lightcurves, filters baseline function =======================================================
name flt π_πm |Ssmp ClipOutliers scl_col |off col0 col3 col4 col5 col6 col7 col8|sin id GP spline
KELT-20_014101.dat CH1 0.1 |None c1:W11C4n1 med_sub | y 0 0 0 0 0 1 1|n 1 n None
KELT-20_014102.dat CH2 0.2 |None c1:W11C4n1 med_sub | y 0 0 0 0 0 1 1|n 2 n None
KELT-20_014103.dat CH3 0.3 |None c1:W11C4n1 med_sub | y 0 0 0 0 0 1 1|n 3 n None
Roll-angle spline fit#
[8]:
#create a copy of the light curve object on which we will use the splines
lcobj_spl = deepcopy(lc_obj)
lcobj_spl.add_spline(lc_list="all", par="col5", degree=3, knot_spacing=50 )
# ============ Input lightcurves, filters baseline function =======================================================
name flt π_πm |Ssmp ClipOutliers scl_col |off col0 col3 col4 col5 col6 col7 col8|sin id GP spline
KELT-20_014101.dat CH1 0.1 |None c1:W11C4n1 med_sub | n 0 0 0 0 0 1 1|n 1 n c5:d3k50
KELT-20_014102.dat CH2 0.2 |None c1:W11C4n1 med_sub | n 0 0 0 0 0 1 1|n 2 n c5:d3k50
KELT-20_014103.dat CH3 0.3 |None c1:W11C4n1 med_sub | n 0 0 0 0 0 1 1|n 3 n c5:d3k50
[9]:
fit_obj = CONAN.fit_setup(R_st=(1.617,0.05), verbose=False)
fit_obj.sampling(sampler="dynesty",n_cpus=10, n_live=200,verbose=False)
[ ]:
create_configfile(lcobj_spl, None, fit_obj, 'spl_config.dat', both=True, verify=True)
configuration file saved as spl_config.dat
configuration file saved as spl_config.yaml
[ ]:
result_spl = CONAN.run_fit(lcobj_spl, None, fit_obj,
out_folder="result_KELT20_spl",
rerun_result=True)
Roll-angle Sinusoid fit#
[8]:
lcobj_sin = deepcopy(lc_obj)
#set trig='sincos' to use an addition of sin and cos in roll-angle upto order n. Amplitudes are in ppm
lcobj_sin.add_sinusoid( lc_list = "same",
trig = "sincos",
n = 3,
par = "col5",
Amp = (-2000,0,2000), #same prior for all amplitudes
P = 360,
x0 = 0, #phase of the first sine
)
fitting same sinusoid to all LCs.
# ============ Input lightcurves, filters baseline function =======================================================
name flt π_πm |Ssmp ClipOutliers scl_col |off col0 col3 col4 col5 col6 col7 col8|sin id GP spline
KELT-20_014101.dat CH1 0.1 |None c1:W11C4n1 med_sub | y 0 0 0 0 0 1 1|y 1 n None
KELT-20_014102.dat CH2 0.2 |None c1:W11C4n1 med_sub | y 0 0 0 0 0 1 1|y 2 n None
KELT-20_014103.dat CH3 0.3 |None c1:W11C4n1 med_sub | y 0 0 0 0 0 1 1|y 3 n None
# ============ Sinusoidal signals: Amp*trig(2π/P*(x-x0)) - trig=sin or cos or both added==========================
name/filt trig n_harmonics x Amp[ppm] P x0
same sincos 3 col5 U(-2000,0,2000) F(360) F(0)
[9]:
fit_obj = CONAN.fit_setup(R_st=(1.617,0.05), verbose=False)
fit_obj.sampling(sampler="dynesty",n_cpus=10, n_live=200,verbose=False)
[10]:
create_configfile(lcobj_sin, None, fit_obj, 'sine_config.yaml',
both=True,verify=True)
configuration file saved as sine_config.dat
configuration file saved as sine_config.yaml
[ ]:
result_sin = CONAN.run_fit(lcobj_sin, None, fit_obj,
out_folder="result_KELT20_sin",
rerun_result=True)
Roll-angle GP fit#
[13]:
lcobj_gp = lc_obj
[14]:
lcobj_gp.add_GP(lc_list = "same", # same GP to be used to model all visits
par = "col5", # independent variable for the GP
kernel = "mat32", # kernel to use
amplitude = (10,146,700), # ppm
lengthscale = (10, 45, 100), # in unit of col5 (degrees)
gp_pck = ["ce","ce","ce"]
)
# ============ Input lightcurves, filters baseline function =======================================================
name flt π_πm |Ssmp ClipOutliers scl_col |off col0 col3 col4 col5 col6 col7 col8|sin id GP spline
KELT-20_014101.dat CH1 0.1 |None c1:W11C4n1 med_sub | n 0 0 0 0 0 1 1|n 1 ce None
KELT-20_014102.dat CH2 0.2 |None c1:W11C4n1 med_sub | n 0 0 0 0 0 1 1|n 2 ce None
KELT-20_014103.dat CH3 0.3 |None c1:W11C4n1 med_sub | n 0 0 0 0 0 1 1|n 3 ce None
# ============ Photometry GP properties (start newline with name of * or + to Xply or add a 2nd gp to last file) =========
name/filt kern par h1:[Amp] h2:[len_scale1] h3:[Q,Ξ·,C,Ξ±,b] h4:[P]
same mat32 col5 U(10,146,700) U(10,45,100) None None
[15]:
fit_obj = CONAN.fit_setup(R_st=(1.617,0.05), verbose=False)
fit_obj.sampling(sampler="dynesty",n_cpus=10, n_live=200,verbose=False)
[16]:
create_configfile(lcobj_gp, None, fit_obj, 'gp_config.yaml',
both=True,verify=True)
configuration file saved as gp_config.dat
configuration file saved as gp_config.yaml
[ ]:
result_gp = CONAN.run_fit(lcobj_gp, None, fit_obj,
out_folder="result_KELT20_gp",
rerun_result=True)
[18]:
from CONAN import load_result
result = load_result("result_KELT20_gp")
['lc'] Output files, ['KELT-20_014101_lcout.dat', 'KELT-20_014102_lcout.dat', 'KELT-20_014103_lcout.dat'], loaded into result object
load_lightcurves(): input_lc is provided, using it to load lightcurves.
['rv'] Output files, [], loaded into result object
load_rvs(): input_rv is provided, using it to load rvs.
Linking the last created lightcurve object to the rv object for parameter linking. if this is not the related LC object, input the correct one using `lc_obj` argument of `load_rvs()`
.
Compare results#
[12]:
from CONAN import compare_results
# load all results for comparison
comp = compare_results(["result_KELT20_spl", "result_KELT20_sin", "result_KELT20_gp"])
['lc'] Output files, ['KELT-20_014101_lcout.dat', 'KELT-20_014102_lcout.dat', 'KELT-20_014103_lcout.dat'], loaded into result object
load_lightcurves(): input_lc is provided, using it to load lightcurves.
['rv'] Output files, [], loaded into result object
load_rvs(): input_rv is provided, using it to load rvs.
Linking the last created lightcurve object to the rv object for parameter linking. if this is not the related LC object, input the correct one using `lc_obj` argument of `load_rvs()`
.
['lc'] Output files, ['KELT-20_014101_lcout.dat', 'KELT-20_014102_lcout.dat', 'KELT-20_014103_lcout.dat'], loaded into result object
load_lightcurves(): input_lc is provided, using it to load lightcurves.
['rv'] Output files, [], loaded into result object
load_rvs(): input_rv is provided, using it to load rvs.
Linking the last created lightcurve object to the rv object for parameter linking. if this is not the related LC object, input the correct one using `lc_obj` argument of `load_rvs()`
.
['lc'] Output files, ['KELT-20_014101_lcout.dat', 'KELT-20_014102_lcout.dat', 'KELT-20_014103_lcout.dat'], loaded into result object
load_lightcurves(): input_lc is provided, using it to load lightcurves.
['rv'] Output files, [], loaded into result object
load_rvs(): input_rv is provided, using it to load rvs.
Linking the last created lightcurve object to the rv object for parameter linking. if this is not the related LC object, input the correct one using `lc_obj` argument of `load_rvs()`
.
[ ]:
occ_pars = ['CH1_DFocc','CH2_DFocc','CH3_DFocc'] #occultation depth of the 3 visits

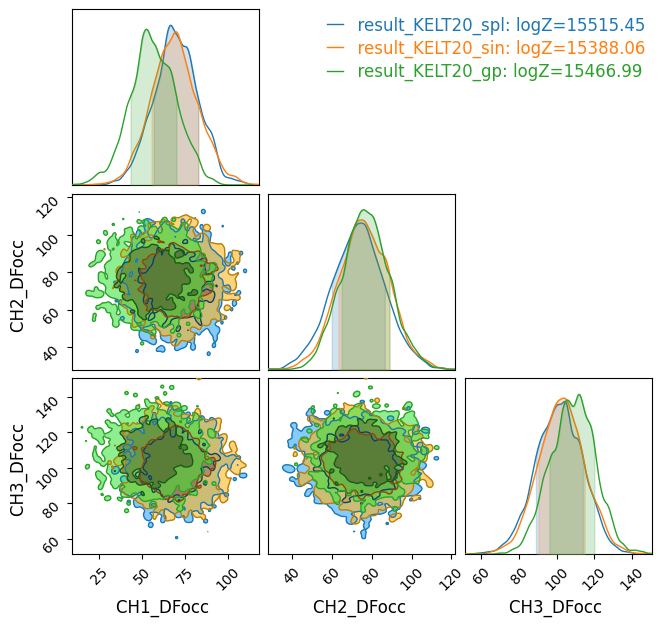

comp.plot_distributions(pars = occ_pars, figsize=(7,7));
Notice that the evidence for each model fit is also shows and thus useful for comparison. In this case, the spline model has the highest evidence.
[ ]:

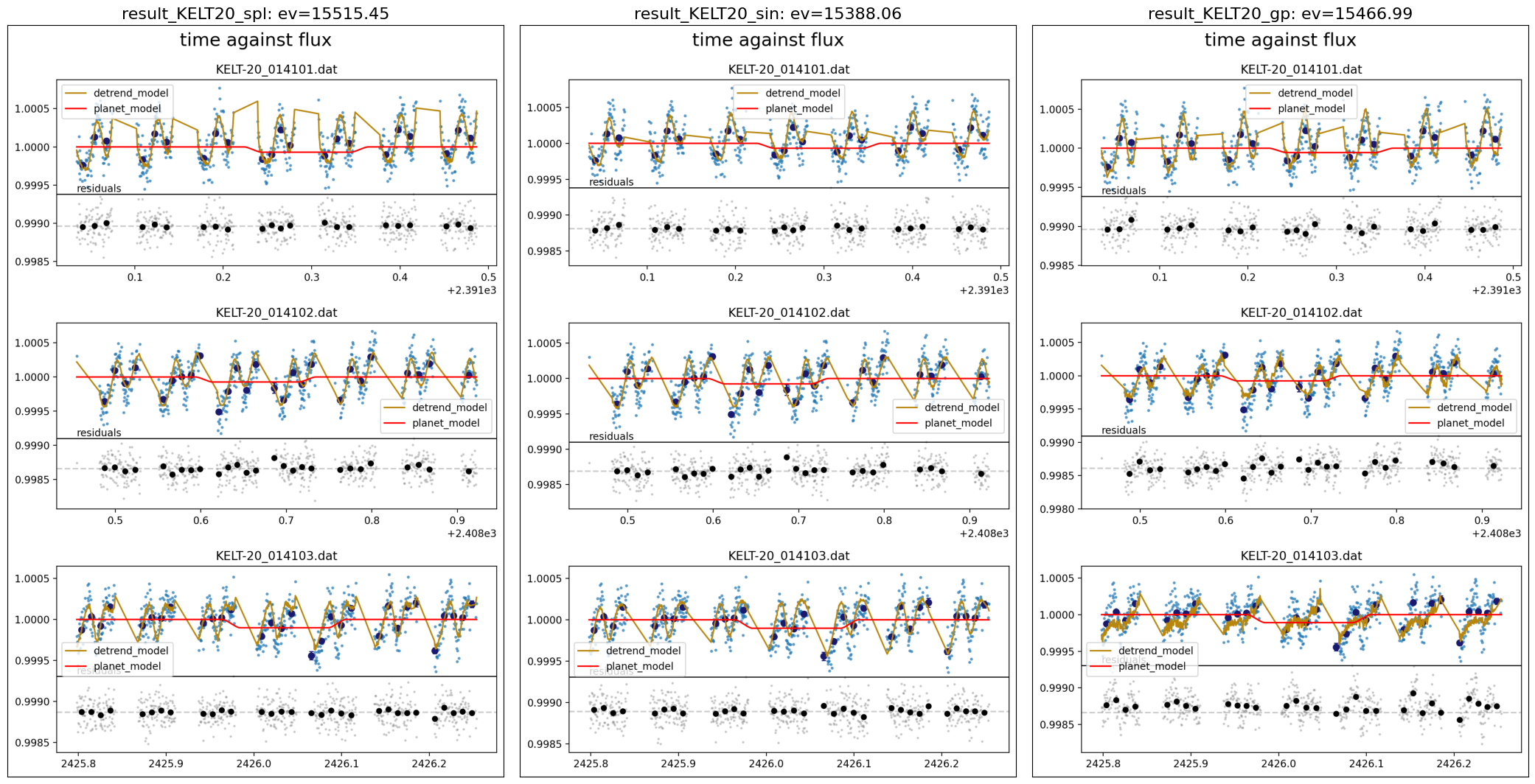

comp.plot_lc();
Letβs visualize how well the different methods model the roll-angle trend
[ ]:

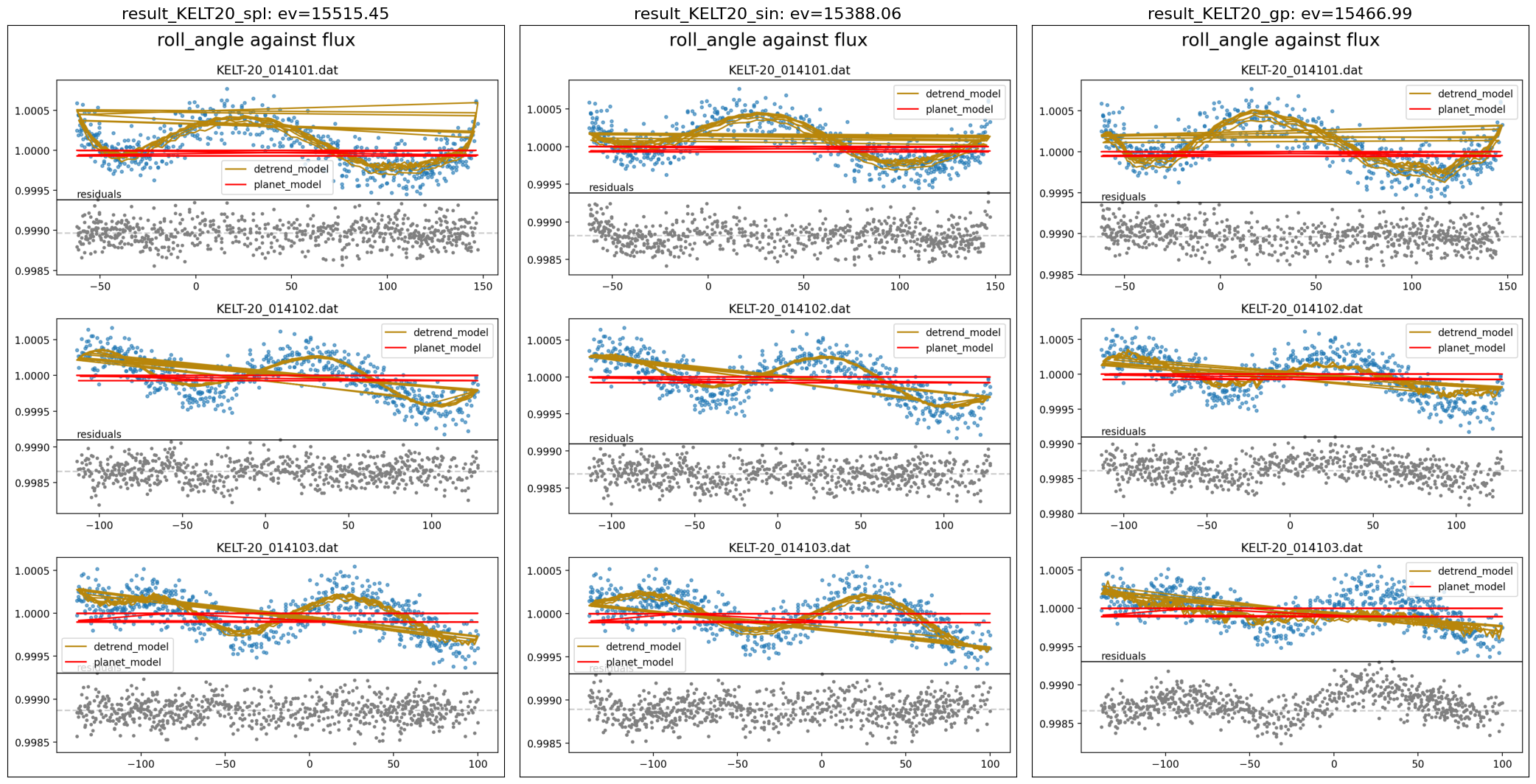

comp.plot_lc(plot_cols=(5,1), col_labels=("roll_angle","flux"));
[ ]:

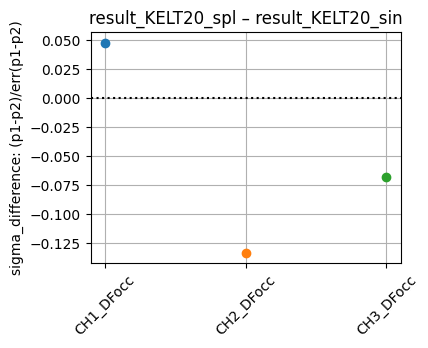

comp.plot_param_sigma_diff(pars = occ_pars, res_index=[0,1], figsize=(4,3));
[ ]:

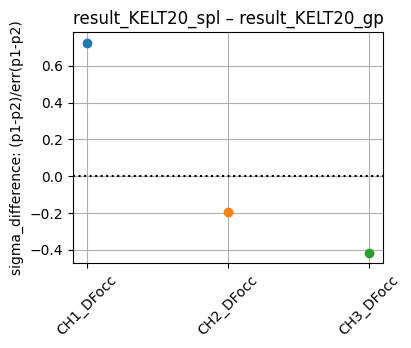

comp.plot_param_sigma_diff(pars = occ_pars, res_index=[0,2], figsize=(4,3));
comparing the results, the occultation depths for each visit are less than 1 sigma apart
