K2-233: LC and multi-GP RV fit#
We will analyse the LC and RV data of the 3-planet system, K2-233 as published in Barragan et al. 2023
[1]:
import CONAN
import matplotlib.pyplot as plt
import numpy as np
CONAN.__version__
[1]:
'3.3.12'
[ ]:
%matplotlib inline
Data Analysis#
Setup LC#
[ ]:
lc_obj = CONAN.load_lightcurves("K2-233_C15_detrended_cut.dat", data_filepath="data", nplanet=3)
lc_obj.supersample("K2-233_C15_detrended_cut.dat", ss_factor=30)

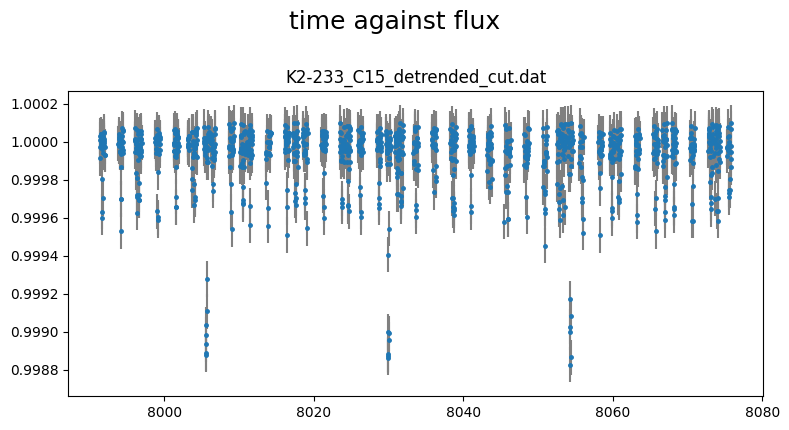

lc_obj.plot()
load_lightcurves(): loading lightcurves from path - data/
Supersampling K2-233_C15_detrended_cut.dat with exp_time=29.4mins each divided into 30 subexposures
# ============ Input lightcurves, filters baseline function =======================================================
name flt 𝜆_𝜇m |Ssmp ClipOutliers scl_col |off col0 col3 col4 col5 col6 col7 col8|sin id GP spline
K2-233_C15_detrended_cut.dat V 0.6 |x30 None None | y 0 0 0 0 0 0 0|n 1 n None
[ ]:
traocc_pars =dict( T_0 = [(7991.6745, 7991.6897, 7991.7077), #planet 1
(7586.8425, 7586.862, 7586.9105), #planet 2
(8005.5640, 8005.5802, 8005.6008)], #planet 3
Period = [(2.4667, 2.467, 2.4683),
(7.0547, 7.060, 7.0655),
(24.3509,24.36, 24.3781)],
Impact_para = [(0,0.13,0.5),
(0,0.13,0.5),
(0,0.3,0.5)],
RpRs = (0.01, 0.02, 0.05),
rho_star = (3.17,0.07), #g/cm^3 - unit of stellar density
K = (0,2,5), #m/s - unit of rv data
Eccentricity = [0,
0,
(0,0.1,0.3) ], #unitless
omega = [90,
90,
(0,90, 360)]
)
[ ]:
lc_obj.planet_parameters(**traocc_pars)
# ============ Planet parameters (Transit and RV) setup ==========================================================
name fit prior note
[rho_star]/Duration y N(3.17,0.07) #choice in []|unit(gcm^-3/days)
--------repeat this line & params below for multisystem, adding '_planet_number' to the names e.g RpRs_1 for planet 1, ...
RpRs_1 y U(0.01,0.02,0.05) #range[-0.5,0.5]
Impact_para_1 y U(0,0.13,0.5) #range[0,2]
T_0_1 y U(7991.6745,7991.6897,7991.7077) #unit(days)
Period_1 y U(2.4667,2.467,2.4683) #range[0,inf]days
[Eccentricity_1]/sesinw_1 n F(0) #choice in []|range[0,1]/range[-1,1]
[omega_1]/secosw_1 n F(90) #choice in []|range[0,360]deg/range[-1,1]
K_1 y U(0,2,5) #unit(same as RVdata)
------------
RpRs_2 y U(0.01,0.02,0.05) #range[-0.5,0.5]
Impact_para_2 y U(0,0.13,0.5) #range[0,2]
T_0_2 y U(7586.8425,7586.862,7586.9105) #unit(days)
Period_2 y U(7.0547,7.06,7.0655) #range[0,inf]days
[Eccentricity_2]/sesinw_2 n F(0) #choice in []|range[0,1]/range[-1,1]
[omega_2]/secosw_2 n F(90) #choice in []|range[0,360]deg/range[-1,1]
K_2 y U(0,2,5) #unit(same as RVdata)
------------
RpRs_3 y U(0.01,0.02,0.05) #range[-0.5,0.5]
Impact_para_3 y U(0,0.3,0.5) #range[0,2]
T_0_3 y U(8005.564,8005.5802,8005.6008) #unit(days)
Period_3 y U(24.3509,24.36,24.3781) #range[0,inf]days
[Eccentricity_3]/sesinw_3 y U(0,0.1,0.3) #choice in []|range[0,1]/range[-1,1]
[omega_3]/secosw_3 y U(0,90,360) #choice in []|range[0,360]deg/range[-1,1]
K_3 y U(0,2,5) #unit(same as RVdata)
[ ]:
lc_obj.limb_darkening(q1=(0,0.2,1), q2=(0,0.2,1))
# ============ Limb darkening setup =============================================================================
filters fit q1 q2
V y U(0,0.2,1) U(0,0.2,1)
Setup RV#
[ ]:
rv_obj = CONAN.load_rvs( file_list = "k2_233rv.dat",
data_filepath="data",
nplanet = 3,
rv_unit = "m/s",
lc_obj = lc_obj
)
load_rvs(): loading RVs from path - data/
Let’s see what the data looks like, using pandas to read the ndarray
[ ]:
import pandas as pd
pd.DataFrame(rv_obj._input_rv["k2_233rv.dat"]).head()
| col0 | col1 | col2 | col3 | col4 | col5 | |
|---|---|---|---|---|---|---|
| 0 | 8257.575545 | -9622.0 | 1.9 | 7650.8 | 17.4 | 0.6893 |
| 1 | 8257.636216 | -9624.4 | 2.0 | 7654.2 | 15.6 | 0.6941 |
| 2 | 8257.755000 | -9626.0 | 2.0 | 7663.5 | 21.3 | 0.7034 |
| 3 | 8258.564438 | -9659.2 | 1.9 | 7683.5 | 56.6 | 0.7124 |
| 4 | 8258.658789 | -9666.3 | 2.2 | 7659.1 | 43.6 | 0.6915 |
col0: timecol1: RV (m/s)col2: RV error (m/s)col3: FWHM (m/s)col4: BIS (m/s)col5: S’HK
let’s see what col1,col3,col4 look loike as a function of time
[ ]:

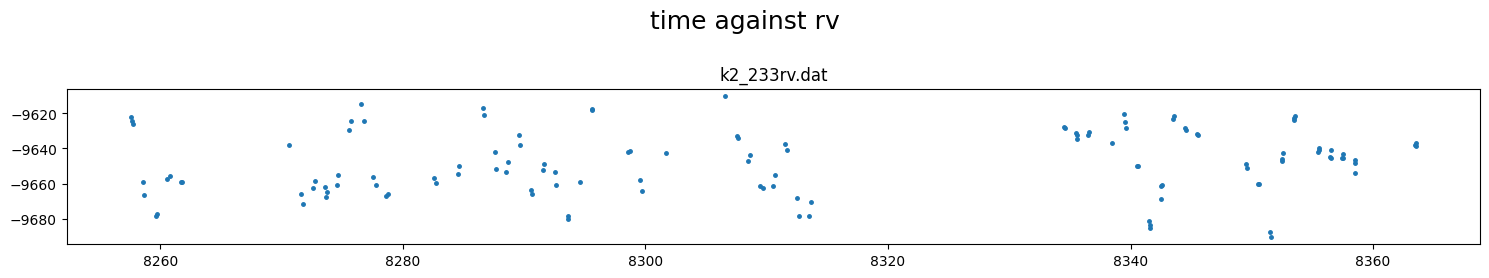

rv_obj.plot(plot_cols=(0,1), figsize=(15,3))

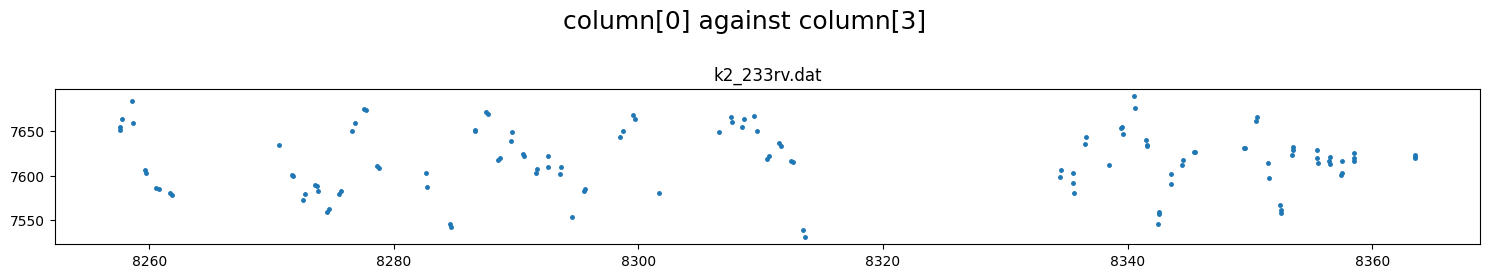

rv_obj.plot(plot_cols=(0,3), figsize=(15,3))

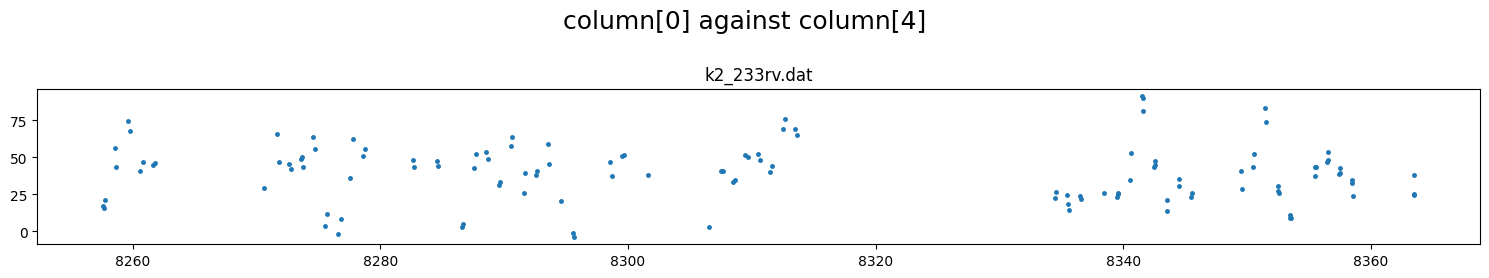

rv_obj.plot(plot_cols=(0,4), figsize=(15,3))
We will run a multidimensional GP (with Spleaf) using a quasiperiodic kernel that models the stellar activity signal across the 3 time series following the method used in Barragan et al. 2023.
Each timeseries in modeled by a linear combination of the qp kernel and its derivative with amplitudes h1(amplitude) and h5
[ ]:
rv_obj.rv_baseline(gamma = (-9700, -9650, -9600))
# ============ Input RV curves, baseline function, GP, spline, gamma ============================================
name RVunit scl_col |col0 col3 col4 col5| sin GP spline_config | gamma_m/s
k2_233rv.dat m/s None | 0 0 0 0| 0 n None | U(-9700,-9650,-9600)
add RV GP#
[ ]:
rv_obj.add_rvGP(rv_list = 'k2_233rv.dat',
# #RV #FWHM #BIS
par = [( "col1", "col3", "col4" )],
err_col = [( "col2", "col2", "col2" )],
kernel = [( "qp", "qp", "qp" )],
amplitude = [( (0., 4, 100), (0., 1, 100), (-100,0,100) )],
lengthscale = [( (1,10, 500), None, None )],
h3 = [( (0.1,0.5,5), None, None )],
h4 = [( (8,10,12), None, None )],
h5 = [( (-100, 0, 100), 0, (-100, 0, 100) )],
operation = [( "+", "+" )],
gp_pck = "sp",
)
# ============ Input RV curves, baseline function, GP, spline, gamma ============================================
name RVunit scl_col |col0 col3 col4 col5| sin GP spline_config | gamma_m/s
k2_233rv.dat m/s None | 0 0 0 0| 0 sp None | F(0.0)
# ============ RV GP properties (start newline with name of * or + to Xply or add a 2nd gp to last file) =======
name kern par h1:[Amp_ppm] h2:[len_scale] h3:[Q,η,C,α,b] h4:[P] | h5:[Der_Amp_ppm] ErrCol
k2_233rv.dat qp col1 U(0.0,4,100) U(1,10,500) U(0.1,0.5,5) U(8,10,12) | U(-100,0,100) col2
|+| qp col3 U(0.0,1,100) None None None | F(0) col2
|+| qp col4 U(-100,0,100) None None None | U(-100,0,100) col2
Setup Sampling#
[ ]:
fit_obj = CONAN.fit_setup( R_st = (0.71,0.01),
M_st = (0.79,0.01))
fit_obj.sampling(n_cpus=10,n_live=100)
# ============ Stellar input properties ======================================================================
# parameter value
Radius_[Rsun] N(0.71,0.01)
Mass_[Msun] N(0.79,0.01)
Input_method:[R+rho(Rrho), M+rho(Mrho)]: Rrho
# ============ FIT setup =====================================================================================
Number_steps 2000
Number_chains 64
Number_of_processes 10
Burnin_length 500
n_live 100
force_nlive False
d_logz 0.1
Sampler(emcee/dynesty) dynesty
emcee_move(stretch/demc/snooker) stretch
nested_sampling(static/dynamic[pfrac]) static
leastsq_for_basepar(y/n) n
apply_LCjitter(y/n,list) y
apply_RVjitter(y/n,list) y
LCjitter_loglims(auto/[lo,hi]) auto
RVjitter_lims(auto/[lo,hi]) auto
LCbasecoeff_lims(auto/[lo,hi]) auto
RVbasecoeff_lims(auto/[lo,hi]) auto
Light_Travel_Time_correction(y/n) n
apply_LC_GPndim_jitter(y/n) y
apply_RV_GPndim_jitter(y/n) y
apply_LC_GPndim_offset(y/n) y
apply_RV_GPndim_offset(y/n) y
Save / Load config file#
[ ]:
CONAN.create_configfile(None, rv_obj, fit_obj,
filename='k2-233_lcrv_spleaf_multiGP.dat')
configuration file saved as k2-233_lcrv_spleaf_multiGP.dat
if config file already saved to file. It can be reloaded to create all required objects to perform the fit
[ ]:
import CONAN
lc_obj, rv_obj, fit_obj = CONAN.load_configfile('k2-233_lcrv_spleaf_multiGP.dat')
load_lightcurves(): loading lightcurves from path - data/
load_rvs(): loading RVs from path - data/
Perform the fit#
[ ]:
result = CONAN.run_fit(lc_obj, rv_obj, fit_obj,
out_folder="result_k2-233_LC_RV3D_GP",
rerun_result=True
# resume_sampling=True,
);
Creating output folder...result_k2-233_LC_RV3D_GP
configuration file saved as result_k2-233_LC_RV3D_GP/config_save.dat
================ CONAN fit launched!!! ================
Setting up photometry arrays ...
Setting up RV arrays ...
Plotting prior distributions ...
----------------------------------
Generating initial model(s) ...
--------------------------- [0.26 secs]
Plotting initial model(s) ...
--------------------------- [4.08 secs]
Fit setup
----------
No of cpus: 10
No of dimensions: 36
fitting parameters: ['rho_star' 'T_0_1' 'RpRs_1' 'Impact_para_1' 'Period_1' 'K_1' 'T_0_2'
'RpRs_2' 'Impact_para_2' 'Period_2' 'K_2' 'T_0_3' 'RpRs_3'
'Impact_para_3' 'Period_3' 'sesin(w)_3' 'secos(w)_3' 'K_3' 'V_q1' 'V_q2'
'lc1_logjitter' 'rv1_gamma' 'rv1_jitter' 'lc1_off' 'GPrv1_Amp1_col1'
'GPrv1_len1_col1' 'GPrv1_η1_col1' 'GPrv1_P1_col1' 'GPrv1_DerAmp1_col1'
'GPrv1_Amp2_col3' 'GPrv1_Amp3_col4' 'GPrv1_DerAmp3_col4' 'rv1_off_col3'
'rv1_off_col4' 'rv1_jitt_col3' 'rv1_jitt_col4']
============ Samping started ... (using dynesty [static])======================
WARNING: Number of dynesty live points is less than 10*ndim. Increasing number of live points to min(10*ndim, 1000)
No of live points: 360
30237it [5:54:34, 1.42it/s, +360 | bound: 496 | nc: 1 | ncall: 1650088 | eff(%): 1.855 | loglstar: -inf < 9354.515 < inf | logz: 9272.894 +/- 0.446 | dlogz: 0.000 > 0.100]
Dynesty chain written to disk as result_k2-233_LC_RV3D_GP/chains_dict.pkl. Run `result=CONAN.load_result()` to load it.
============ Sampling Finished ==============================================[5.92hrs]
Making corner plot(s) ...
----> saved 3 corner plot(s) as result_k2-233_LC_RV3D_GP/corner_*.png [19.70 secs]
Creating *out.dat files using the median posterior ...
- Writing LC output to file: result_k2-233_LC_RV3D_GP/out_data/K2-233_C15_detrended_cut_lcout.dat
- Writing RV output with GP(Spleaf) to file: result_k2-233_LC_RV3D_GP/out_data/k2_233rv_rvout.dat
----> Plotting figures using median posterior values ...[4.32 secs]
----> Plotting figures using max posterior values ...[5.64 secs]
Computing AIC, BIC stats ...[0.00 secs]
Computing photometric noise (red and white) correction factors ... [24.019403219223022 secs
['lc'] Output files, ['K2-233_C15_detrended_cut_lcout.dat'], loaded into result object
load_lightcurves(): input_lc is provided, using it to load lightcurves.
['rv'] Output files, ['k2_233rv_rvout.dat'], loaded into result object
load_rvs(): input_rv is provided, using it to load rvs.
Linking the last created lightcurve object to the rv object for parameter linking. if this is not the related LC object, input the correct one using `lc_obj` argument of `load_rvs()`
.
CONAN: I have now crushed your data,
the planetary information it hides is laid bare in the results.
I am super ready for another quest.
Load result#
[1]:
import CONAN
from CONAN.utils import bin_data, phase_fold
import matplotlib.pyplot as plt
import pandas as pd
import numpy as np
[2]:
result =CONAN.load_result("result_k2-233_LC_RV3D_GP")
result
['lc'] Output files, ['K2-233_C15_detrended_cut_lcout.dat'], loaded into result object
load_lightcurves(): input_lc is provided, using it to load lightcurves.
['rv'] Output files, ['k2_233rv_rvout.dat'], loaded into result object
load_rvs(): input_rv is provided, using it to load rvs.
Linking the last created lightcurve object to the rv object for parameter linking. if this is not the related LC object, input the correct one using `lc_obj` argument of `load_rvs()`
.
[2]:
Object containing posterior from emcee/dynesty sampling
Parameters in chain are:
['rho_star', 'T_0_1', 'RpRs_1', 'Impact_para_1', 'Period_1', 'K_1', 'T_0_2', 'RpRs_2', 'Impact_para_2', 'Period_2', 'K_2', 'T_0_3', 'RpRs_3', 'Impact_para_3', 'Period_3', 'sesin(w)_3', 'secos(w)_3', 'K_3', 'V_q1', 'V_q2', 'lc1_logjitter', 'rv1_gamma', 'rv1_jitter', 'lc1_off', 'GPrv1_Amp1_col1', 'GPrv1_len1_col1', 'GPrv1_η1_col1', 'GPrv1_P1_col1', 'GPrv1_DerAmp1_col1', 'GPrv1_Amp2_col3', 'GPrv1_Amp3_col4', 'GPrv1_DerAmp3_col4', 'rv1_off_col3', 'rv1_off_col4', 'rv1_jitt_col3', 'rv1_jitt_col4']
use `plot_chains()`, `plot_burnin_chains()`, `plot_corner()` or `plot_posterior()` methods on selected parameters to visualize results.
RVS#
[3]:
result.rv.names
[3]:
['k2_233rv.dat']
[4]:

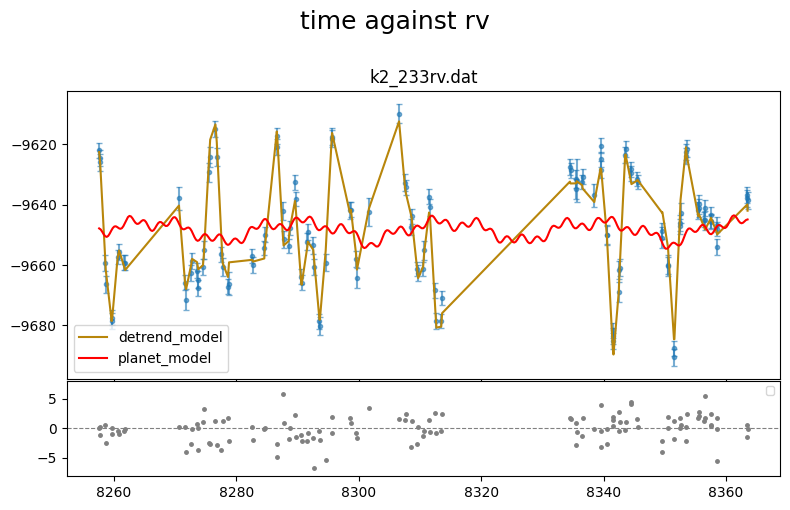

fig = result.rv.plot_bestfit()

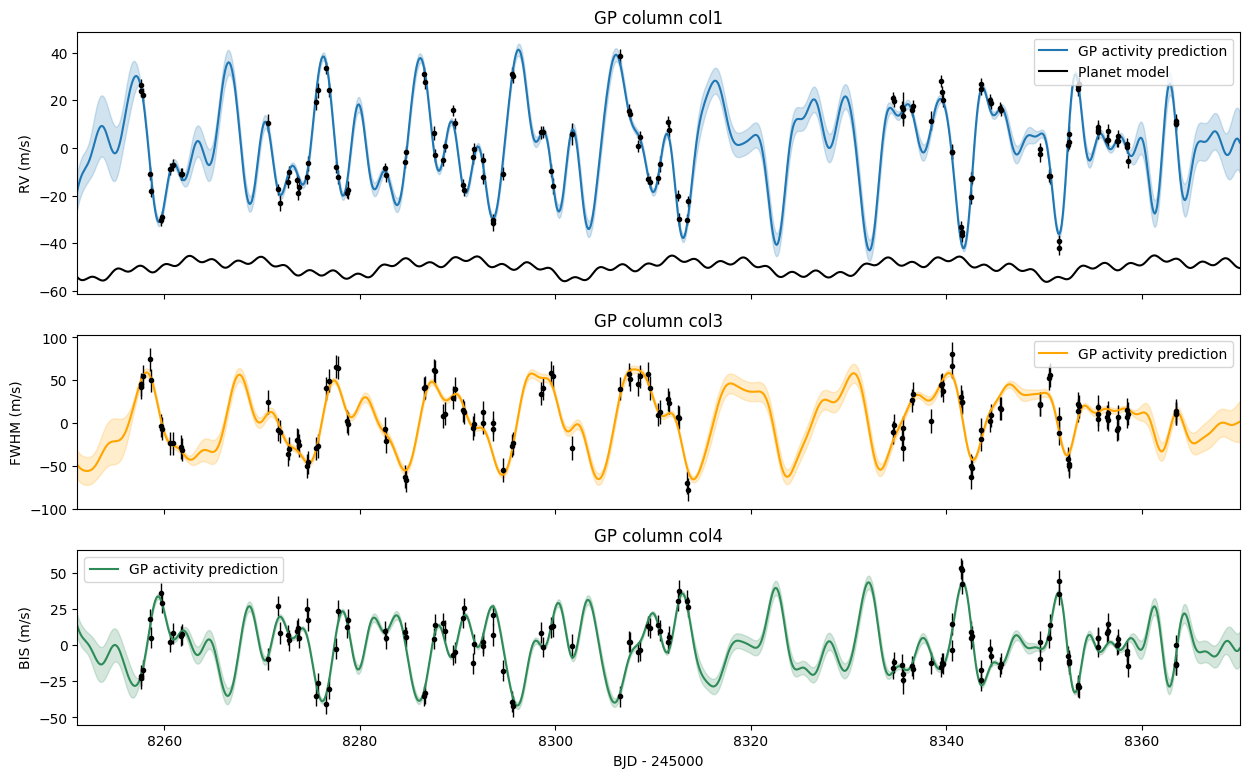

Let’s see how well the multi_GP modeled the timeseries. The GP object is stored in result.rv.GP
[5]:
result.rv.GP['k2_233rv.dat'].get_param_dict()
[5]:
{'GPrv1_Amp1_col1': 5.559818737765244,
'GPrv1_len1_col1': 18.773467070856324,
'GPrv1_η1_col1': 0.4525160513396689,
'GPrv1_P1_col1': 9.796793253671636,
'GPrv1_DerAmp1_col1': 26.417553906775268,
'GPrv1_Amp2_col3': 42.74814429900554,
'GPrv1_len2_col3': nan,
'GPrv1_η2_col3': nan,
'GPrv1_P2_col3': nan,
'GPrv1_DerAmp2_col3': 0.0,
'GPrv1_Amp3_col4': -1.3008287399119354,
'GPrv1_len3_col4': nan,
'GPrv1_η3_col4': nan,
'GPrv1_P3_col4': nan,
'GPrv1_DerAmp3_col4': -27.20793985442789}
[6]:
ndim_gp = result.rv.GP['k2_233rv.dat'].ndim_gp
gp_cols = result.rv.GP['k2_233rv.dat'].gp_cols
gp_cols_err = result.rv.GP['k2_233rv.dat'].gp_cols_err
colors = ["C0","orange","seagreen"]
ylabel = ["RV (m/s)","FWHM (m/s)","BIS (m/s)"]
pred_x = np.linspace( result.rv.indata['k2_233rv.dat']["col0"].min()-6.5,
result.rv.indata['k2_233rv.dat']["col0"].max()+6.5,
1000)
planet_mod = result.rv.evaluate(time=pred_x).planet_model
fig, ax = plt.subplots(ndim_gp, 1, figsize=(15,9), sharex=True, height_ratios=[3,2,2])

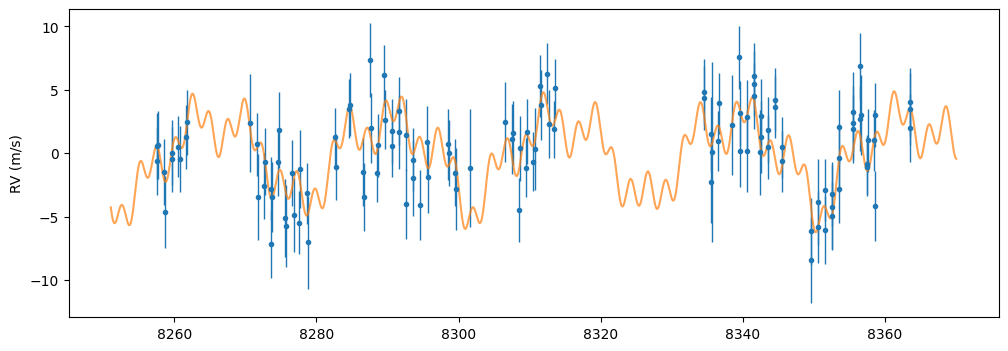

for i,(col,col_err) in enumerate(zip(gp_cols,gp_cols_err)):
pred_col, var_col = result.rv.GP['k2_233rv.dat'].predict(x=pred_x, series_id=i, return_var=True)
off = result.params_dict[f'rv1_off_{col}'].n if i>0 else result.params_dict['rv1_gamma'].n
jitt = result.params_dict[f'rv1_jitt_{col}'].n if i>0 else result.params_dict[f'rv1_jitter'].n
#PLOTTING
ax[i].set_ylabel(ylabel[i])
ax[i].set_title(f"GP column {col}")
ax[i].errorbar( result.rv.indata['k2_233rv.dat']["col0"],
result.rv.indata['k2_233rv.dat'][col]-off,
yerr=np.hypot(result.rv.indata['k2_233rv.dat'][col_err], jitt),
fmt=".", c="k", elinewidth=1)
ax[i].fill_between( pred_x,
pred_col - np.sqrt(var_col),
pred_col + np.sqrt(var_col),
color=colors[i], alpha=0.2)
ax[i].plot(pred_x, pred_col, "-", c=colors[i], label="GP activity prediction")
if i==0:
ax[i].plot(pred_x, planet_mod-50, "-", c="k", label="Planet model")
ax[i].legend()
plt.xlim([min(pred_x), max(pred_x)])
plt.xlabel("BJD - 245000")
plt.show()
[7]:
#load output data files for the rv fits
rv_out = result.rv.outdata['k2_233rv.dat']
rv_out.head()
[7]:
| time | RV | error | full_mod | base_para | base_spl | base_gp | base_total | Rvmodel | det_RV | gamma | residual | phase_1 | phase_2 | phase_3 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0 | 8257.575545 | -9622.0 | 2.607588 | -9622.003806 | 0.0 | 0.0 | 25.836100 | -9622.552057 | 0.548251 | 0.552057 | -9648.388157 | 0.003806 | -0.246882 | 0.000247 | 0.341441 |
| 1 | 8257.636216 | -9624.4 | 2.681327 | -9623.281532 | 0.0 | 0.0 | 24.600069 | -9623.788088 | 0.506556 | -0.611912 | -9648.388157 | -1.118468 | -0.222295 | 0.008841 | 0.343931 |
| 2 | 8257.755000 | -9626.0 | 2.681327 | -9626.319460 | 0.0 | 0.0 | 21.729330 | -9626.658827 | 0.339367 | 0.658827 | -9648.388157 | 0.319460 | -0.174156 | 0.025666 | 0.348806 |
| 3 | 8258.564438 | -9659.2 | 2.607588 | -9659.761829 | 0.0 | 0.0 | -9.331622 | -9657.719779 | -2.042050 | -1.480221 | -9648.388157 | 0.561829 | 0.153879 | 0.140318 | 0.382024 |
| 4 | 8258.658789 | -9666.3 | 2.833640 | -9663.837893 | 0.0 | 0.0 | -13.264544 | -9661.652702 | -2.185192 | -4.647298 | -9648.388157 | -2.462107 | 0.192116 | 0.153682 | 0.385896 |
[8]:
# evaluate the RV model
rvmod = result.rv.evaluate( time = np.array(rv_out["time"]),
return_std = True,
nsamp = 500)
since the RVs are sparsely sampled, we can evaluate the RV model on a smoother time array across both datasets
[71]:
t_sm = np.linspace( rv_out["time"].min()-6.5,
rv_out["time"].max()+6.5,
10000)
rvmod_sm = result.rv.evaluate( file = 'k2_233rv.dat',
time = t_sm,
return_std = True,
nsamp = 500)
[72]:
plt.figure(figsize=(12,4))
plt.errorbar(rv_out["time"],rv_out["det_RV"], rv_out["error"],fmt=".", elinewidth=1)
plt.plot(t_sm, rvmod_sm.planet_model, alpha=0.7)
plt.ylabel("RV (m/s)");
Individual components#
[73]:
result.params.P, result.params.T0
[73]:
([2.467538865661981, 7.059961178010269, 24.367385376491498],
[7991.690538872866, 7586.877488697929, 8005.581655984773])
[74]:
rv_comp = rvmod.components
rv_comp_sm = rvmod_sm.components
[ ]:

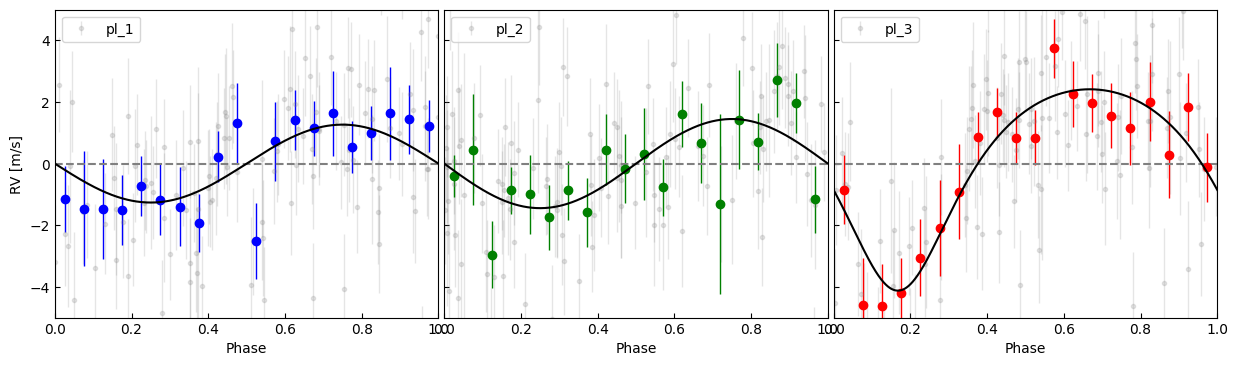

fig, ax = plt.subplots(1,3, sharey=True, figsize=(15,4))
pl = ["pl_1", "pl_2", "pl_3", "pl_1", "pl_2"]
cl = ["b","g","r"]
for i,n in enumerate(["pl_1", "pl_2", "pl_3"]):
phase = phase_fold( t = np.array(rv_out["time"]),
per = result.params.P[i],
t0 = result.params.T0[i],
phase0 = 0)
phase_sm = phase_fold( t = t_sm,
per = result.params.P[i],
t0 = result.params.T0[i],
phase0 = 0)
srt = np.argsort(phase_sm)
pl.remove(n)
subtract_signal = rv_comp[pl[0]] + rv_comp[pl[1]]
subtract_signal_sm = rv_comp_sm[pl[0]] + rv_comp_sm[pl[1]]
planet_signal = rv_out["det_RV"] - subtract_signal
p_bin, rv_bin, err_bin = bin_data(phase, planet_signal, rv_out["error"],bins=20)
ax[i].errorbar( phase, planet_signal, rv_out["error"],
fmt=".",c="gray", elinewidth=1, alpha=0.2,label=n)
ax[i].errorbar(p_bin, rv_bin, err_bin, fmt="o", c=cl[i], elinewidth=1)
ax[i].plot(phase_sm[srt], rv_comp_sm[n][srt],"k",zorder=4)
# ax[i].fill_between( phase_sm[srt],
# (rvmod_sm.sigma_low - subtract_signal_sm)[srt],
# (rvmod_sm.sigma_high-subtract_signal_sm)[srt],
# color="cyan"
# )
ax[i].legend()
ax[i].axhline(0,ls="--",c="gray")
ax[i].set_xlabel("Phase")
ax[0].set_ylabel("RV [m/s]")
ax[i].set_ylim([-5,5])
ax[i].set_xlim([0,1])
ax[i].tick_params(direction="in")
plt.subplots_adjust(wspace=0.015)
LC#
[14]:
result.lc.names
[14]:
['K2-233_C15_detrended_cut.dat']
[15]:
#load output data files for the lc fits
lc_out = result.lc.outdata['K2-233_C15_detrended_cut.dat']
lc_out.head()
[15]:
| time | flux | error | full_mod | base_para | base_sine | base_spl | base_gp | base_total | transit | det_flux | residual | phase_1 | phase_2 | phase_3 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0 | 7991.365514 | 1.000031 | 0.000093 | 0.999985 | 0.999985 | 0.0 | 1.0 | 0.0 | 0.999985 | 1.0 | 1.000046 | 0.000046 | -0.131720 | 0.293236 | 0.416591 |
| 1 | 7991.385946 | 0.999915 | 0.000093 | 0.999985 | 0.999985 | 0.0 | 1.0 | 0.0 | 0.999985 | 1.0 | 0.999930 | -0.000070 | -0.123440 | 0.296131 | 0.417430 |
| 2 | 7991.406378 | 0.999975 | 0.000093 | 0.999985 | 0.999985 | 0.0 | 1.0 | 0.0 | 0.999985 | 1.0 | 0.999990 | -0.000010 | -0.115160 | 0.299025 | 0.418268 |
| 3 | 7991.426811 | 1.000011 | 0.000093 | 0.999985 | 0.999985 | 0.0 | 1.0 | 0.0 | 0.999985 | 1.0 | 1.000026 | 0.000026 | -0.106879 | 0.301919 | 0.419107 |
| 4 | 7991.447243 | 1.000016 | 0.000093 | 0.999985 | 0.999985 | 0.0 | 1.0 | 0.0 | 0.999985 | 1.0 | 1.000031 | 0.000031 | -0.098599 | 0.304813 | 0.419945 |
[16]:
# evaluate the LC model
lcmod = result.lc.evaluate( time = np.array(lc_out["time"]),
return_std = True,
nsamp = 500)
[61]:
t_sm = np.linspace( lc_out["time"].min(),
lc_out["time"].max(),
10000)
lcmod_sm = result.lc.evaluate(
time = t_sm,
return_std = True,
nsamp = 500)
[ ]:

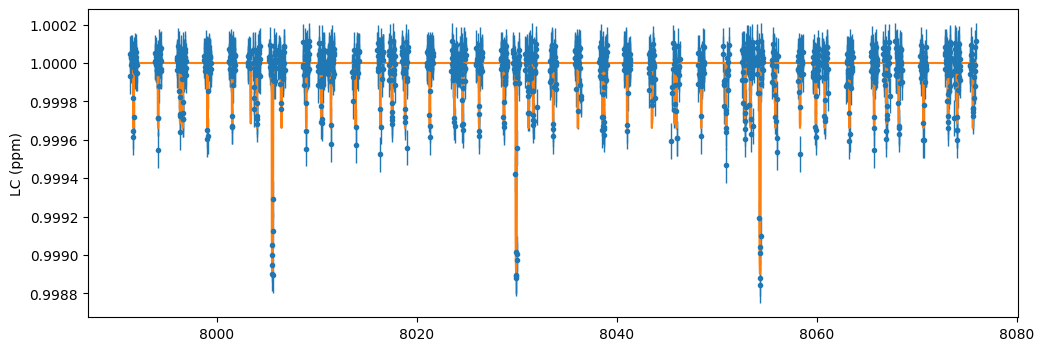

plt.figure(figsize=(12,4))
plt.errorbar(lc_out["time"],lc_out["det_flux"], lc_out["error"],fmt=".", elinewidth=1)
plt.plot(t_sm, lcmod_sm.planet_model)
plt.ylabel("Flux");
[63]:
lc_comp = lcmod.components
lc_comp_sm = lcmod_sm.components
[70]:

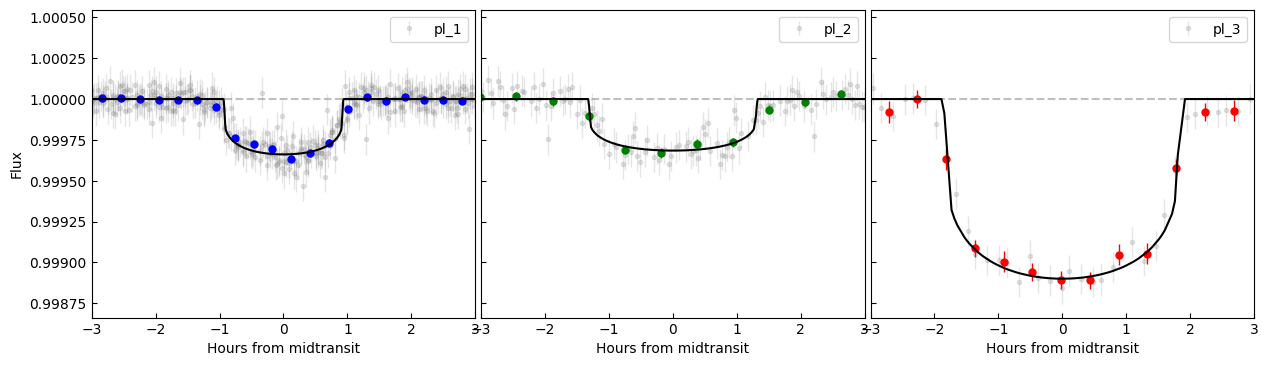

fig, ax = plt.subplots(1,3, sharey=True, figsize=(15,4))
pl = ["pl_1", "pl_2", "pl_3", "pl_1", "pl_2"]
cl = ["b","g","r"]
n_bin = [200, 300, 1300]
for i,n in enumerate(["pl_1", "pl_2", "pl_3"]):
phase = phase_fold( t = np.array(lc_out["time"]),
per = result.params.P[i],
t0 = result.params.T0[i],
phase0 = -0.5)
phase_sm = phase_fold( t = t_sm,
per = result.params.P[i],
t0 = result.params.T0[i],
phase0 = -0.5)
srt = np.argsort(phase_sm)
pl.remove(n)
subtract_signal = lc_comp[pl[0]] + lc_comp[pl[1]] -2
subtract_signal_sm = lc_comp_sm[pl[0]] + lc_comp_sm[pl[1]] -2
planet_signal = lc_out["det_flux"] - subtract_signal
p_bin, lc_bin, err_bin = bin_data(phase, planet_signal, lc_out["error"],bins=n_bin[i])
ax[i].errorbar( phase*result.params.P[i]*24, planet_signal, lc_out["error"],
fmt=".",c="gray", elinewidth=1, alpha=0.2,label=n)
ax[i].errorbar(p_bin*result.params.P[i]*24, lc_bin, err_bin, fmt="o",ms=5, c=cl[i], elinewidth=1)
ax[i].plot(phase_sm[srt]*result.params.P[i]*24, lc_comp_sm[n][srt],"k",zorder=4)
# ax[i].fill_between( phase_sm[srt]*result.params.P[i]*24,
# (lcmod_sm.sigma_low - subtract_signal_sm)[srt],
# (lcmod_sm.sigma_high-subtract_signal_sm)[srt],
# color="cyan"
# )
ax[i].legend()
ax[i].axhline(1,ls="--",c="gray", alpha=0.5)
ax[i].set_xlabel("Hours from midtransit")
ax[0].set_ylabel("Flux")
ax[i].set_xlim([-3,3])
ax[i].tick_params(direction="in")
# ax[-1].set_xlim([-0.01,0.01])
plt.subplots_adjust(wspace=0.015)
[ ]:
